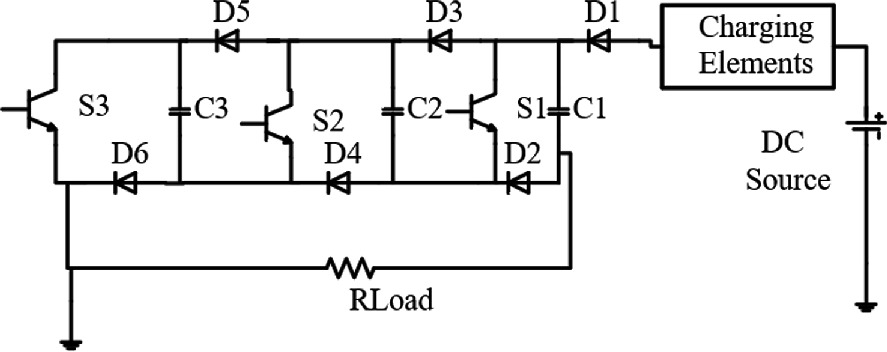

Marx Generator Schematic - Bipolar Solid State Marx Generator Diagram Schematic And Image 09 : This produces an output voltage of v multiplied by the number of capacitors stages.

Marx Generator Schematic - Bipolar Solid State Marx Generator Diagram Schematic And Image 09 : This produces an output voltage of v multiplied by the number of capacitors stages.. Our library is the biggest of these that have literally hundreds of thousands of different products represented. The schematic illustrates an n=1 marx, in which the voltage across all switches as they close in sequence is equal to the charging voltage. The reason for this is that when the first switch closes, it raised the potential on the right side of the lower charging resistor and the bottom of the second capacitor from ground to v, so the potential. The marx generator consists of an array of resistors, capacitors and spark gaps arranged as above. The values of the components are not critical, and therefore not given.

Second stage marx circuit fig. The reason for this is that when the first switch closes, it raised the potential on the right side of the lower charging resistor and the bottom of the second capacitor from ground to v, so the potential. Circuit diagram of marx generator: The values of the components are not critical, and therefore not given. I've added more stages for a total of ten.

Marx Generator Penguin S Lab
Marx Generator Penguin S Lab from www.penguinslab.com
So spark gaps are behave as a. The marx generator consists of an array of resistors, capacitors and spark gaps arranged as follows in the schematic. When dc supply is applied, capacitors charge through resistor by voltage vc. Spark gaps use as a switch, here first spark gap voltage is greater than the voltage vc. Our library is the biggest of these that have literally hundreds of thousands of different products represented. Circuit parameter for simulation and harware The reason for this is that when the first switch closes, it raised the potential on the right side of the lower charging resistor and the bottom of the second capacitor from ground to v, so the potential. To save some capacitors, i've reconnected them in series of 2 for 12kv@5nf.

The circuit generates the high voltage pulse by connecting the capacitors in parallel and connecting in the series of capacitors in the circuit.

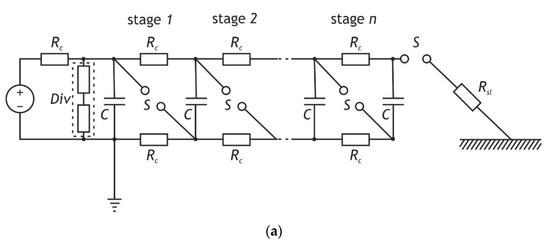

Circuit diagram of marx generator: The circuit of multiplexed impulse generator or commonly called as marx circuit can be seen in the below image. To get started finding 10 stage marx generator circuit schematic diagram , you are right to find our website which has a comprehensive collection of manuals listed. The above figure shows the circuit diagram of a marx generator. So spark gaps are behave as a. The marx generator consists of an array of resistors, capacitors and spark gaps arranged as follows in the schematic. Erwin otto marx provided a multistage impulse generator circuit in 1924. A marx generator is made up of a number of capacitors that are charged in parallel to a given voltage, v, and then discharged in series. Marx generator design principles & latest developments. All unmarked resistors are 1 megaohm, 0.5w resistors. Große auswahl an generator stromerzeuger leise. A bank of 36 marx generators is used by sandia national laboratories to generate. Second stage marx circuit fig.

The reason for this is that when the first switch closes, it raised the potential on the right side of the lower charging resistor and the bottom of the second capacitor from ground to v, so the potential. In this specific model, each stage capacitor is 100nf and is charged to 10 kv. Free online circuit simulator software has been used to create the simulation. A marx generator into a rectangularly shaped pulse with the addition of a single inductor. The circuit of multiplexed impulse generator or commonly called as marx circuit can be seen in the below image.

12v 180kv A Battery Powered Marx Generator And Introduction To Electronics Electronics Circuit Circuit Power
12v 180kv A Battery Powered Marx Generator And Introduction To Electronics Electronics Circuit Circuit Power from i.pinimg.com
This circuit is specifically used to generate high impulse voltage from a low voltage power source. Circuit diagram of marx generator circuit is shown in below image. Marx generator diagrams although the left capacitor has the greatest charge rate, the generator is typically allowed to charge for a long period of time, and all capacitors eventually reach the same charge voltage. A marx generator is an electrical circuit first described by erwin otto marx in 1924. Marx generator is same as like voltage multiplier circuit. Here, first capacitor are connected in parallel. A more elegent approach is to add a trigger circuit, like the one shown above. Marx generator is electrical circuit which used for generate high voltage pulse.

Our library is the biggest of these that have literally hundreds of thousands of different products represented.

Free online circuit simulator software has been used to create the simulation. Normally 'n' number of capacitors are charged in parallel to the voltage (v) connected in series with the resistance rc. Well, here is the instructable you have been waiting for!the device we are going to use to make a powe… All capacitors are series strings of 5 3kv, 10nf ceramic capacitors. I've added more stages for a total of ten. The result was 7cm sparks: Circuit parameter for simulation and harware A second 1,140 liter oil tank was used as a containment vessel. The values of the components are not critical, and therefore not given. Here, first capacitor are connected in parallel. A marx generator is made up of a number of capacitors that are charged in parallel to a given voltage, v, and then discharged in series. The circuit generates the high voltage pulse by connecting the capacitors in parallel and connecting in the series of capacitors in the circuit. They work by charging a number of capacitors in parallel up to the input voltage, and then discharging them in series, producing an output of the input voltage (25kv in this case) multiplied by the number of stages (20).

This produces an output voltage of v multiplied by the number of capacitors stages. In this specific model, each stage capacitor is 100nf and is charged to 10 kv. Our library is the biggest of these that have literally hundreds of thousands of different products represented. High voltage power supply for marx generator: A typical marx generator schematic is shown to the left.

Zvs Tesla Coil Driver Board Marx Generator Jacob S Ladder Induction Heating Welding Books Induction Heating Tesla Coil
Zvs Tesla Coil Driver Board Marx Generator Jacob S Ladder Induction Heating Welding Books Induction Heating Tesla Coil from i.pinimg.com
Marx generator is electrical circuit which used for generate high voltage pulse. A bank of 36 marx generators is used by sandia national laboratories to generate… In this specific model, each stage capacitor is 100nf and is charged to 10 kv. The marx generator consists of an array of resistors, capacitors and spark gaps arranged as follows in the schematic. Marx generator schematic and the pcb. Our library is the biggest of these that have literally hundreds of thousands of different products represented. High voltage power supply for marx generator: Erwin otto marx provided a multistage impulse generator circuit in 1924.

The values of the components are not critical, and therefore not given.

Marx generator is electrical circuit which used for generate high voltage pulse. A more elegent approach is to add a trigger circuit, like the one shown above. This consists of a relaxation oscillator to generate high voltage trigger impulses to initiate the spark at the first gap. All unmarked resistors are 1 megaohm, 0.5w resistors. At 1 m s into the simulation, each of the stage switches close and the marx erects, connecting each capacitor in series. The values of the components are not critical, and therefore not given. Marx generator diagrams although the left capacitor has the greatest charge rate, the generator is typically allowed to charge for a long period of time, and all capacitors eventually reach the same charge voltage. I've added more stages for a total of ten. Circuit diagram of marx generator circuit is shown in below image. A bank of 36 marx generators is used by sandia national laboratories to generate. Super angebote für generator stromerzeuger leise hier im preisvergleich. Free online circuit simulator software has been used to create the simulation. Note that you can add as many 'stages' as you desire!

Erwin otto marx provided a multistage impulse generator circuit in 1924 generator schematic. Marx generator is electrical circuit which used for generate high voltage pulse.
